Super Light Weight, Ultra High Tear Strength
UHMWPE Fabric
Features
Ultra-high molecular weight polyethylene (UHMWPE) fabric is distinguished by its remarkable lightness and strength—so light it can float on water while theoretically capable of supporting approximately 20 tons with a mere 10 mm diameter. This high-density woven fabric provides exceptional tear resistance, tensile strength, and abrasion resistance.
Enhanced with a hydrolysis-resistant PU coating on the back, it demonstrates superior long-term durability, maintaining its integrity even after rigorous “jungle tests” spanning a decade, without significant changes. Its water-repellent nature ensures the fabric remains lightweight even when wet. Additionally, with continued use, the fabric becomes softer, and wrinkles will gradually diminish.

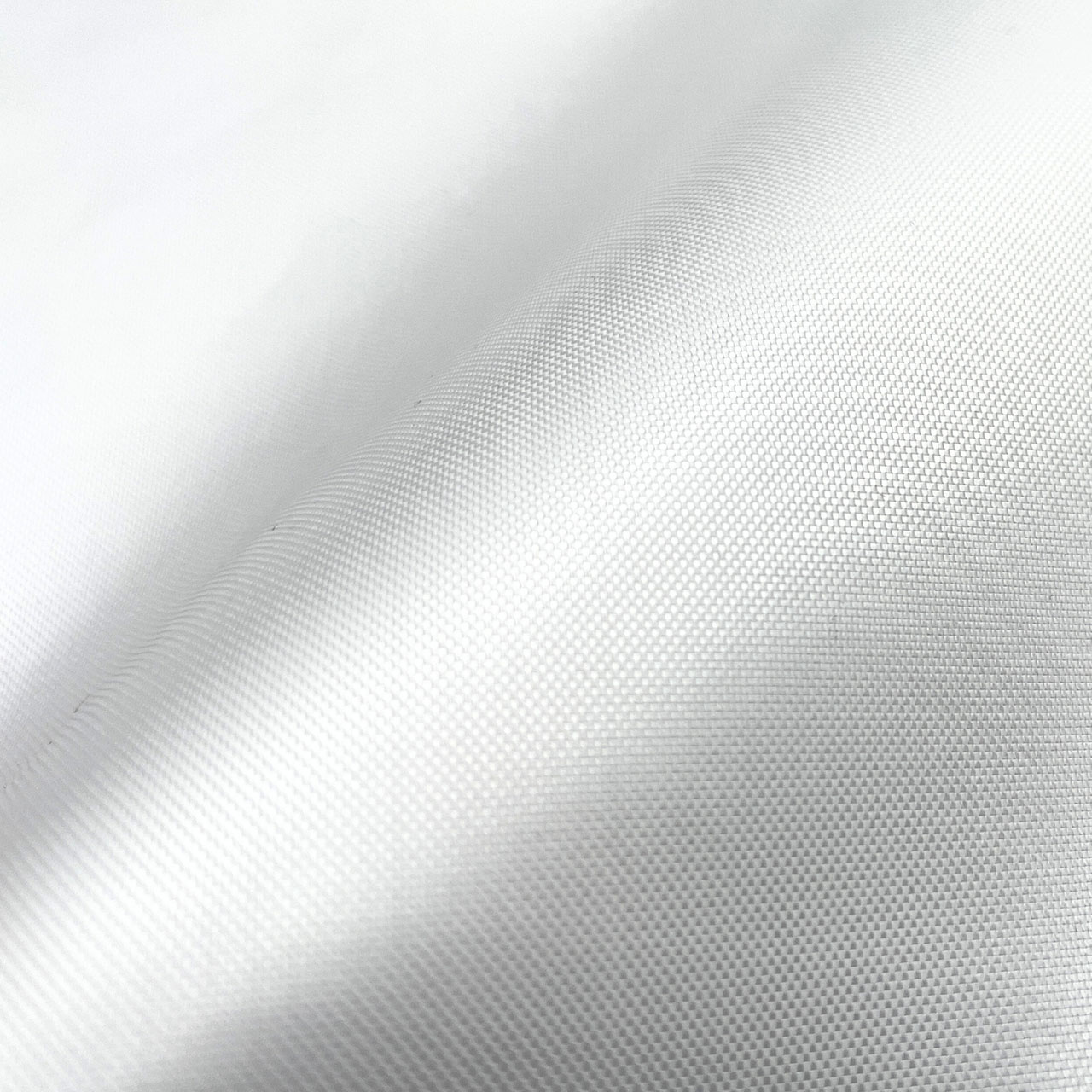

IZ100-WT
White

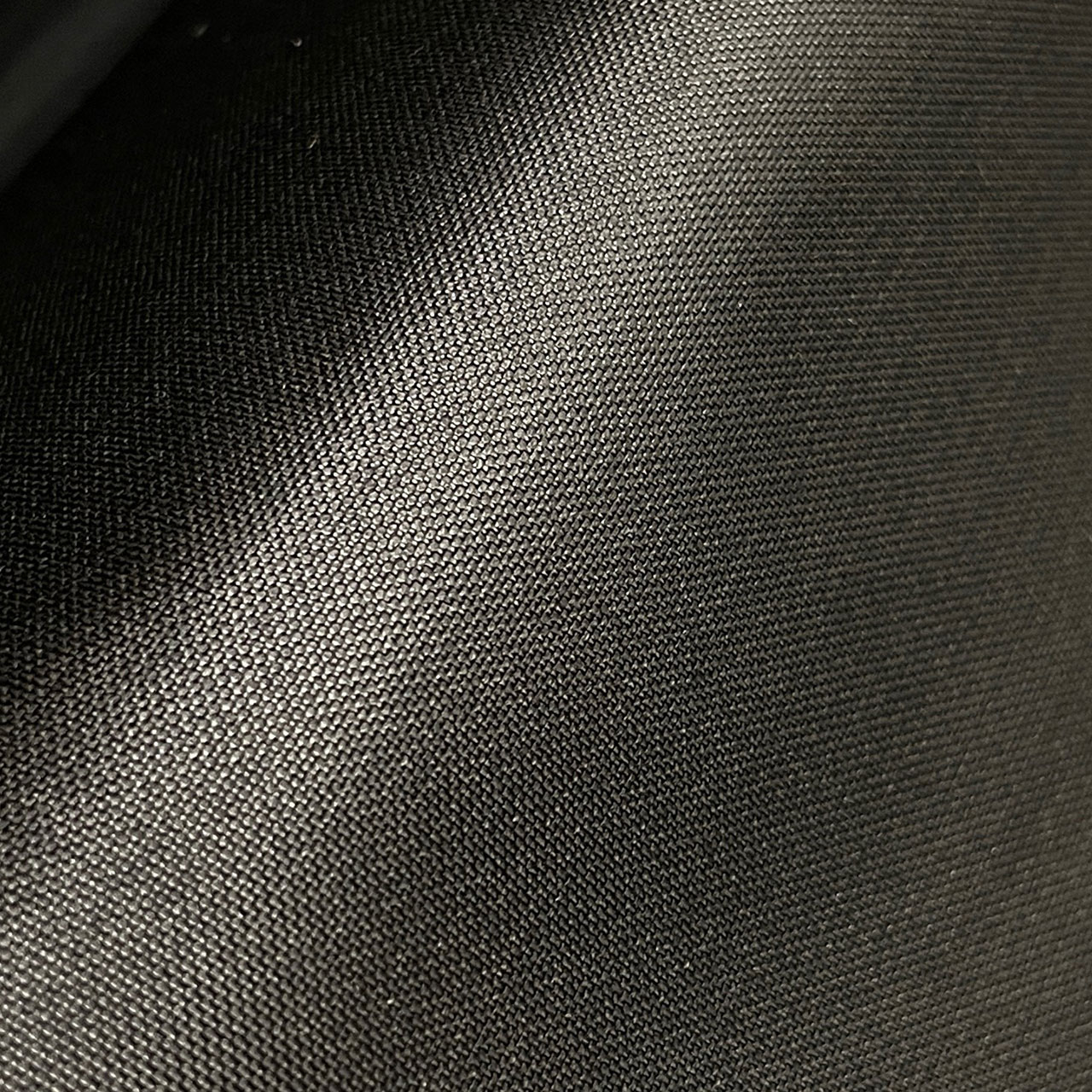

IZ100-BK
Black

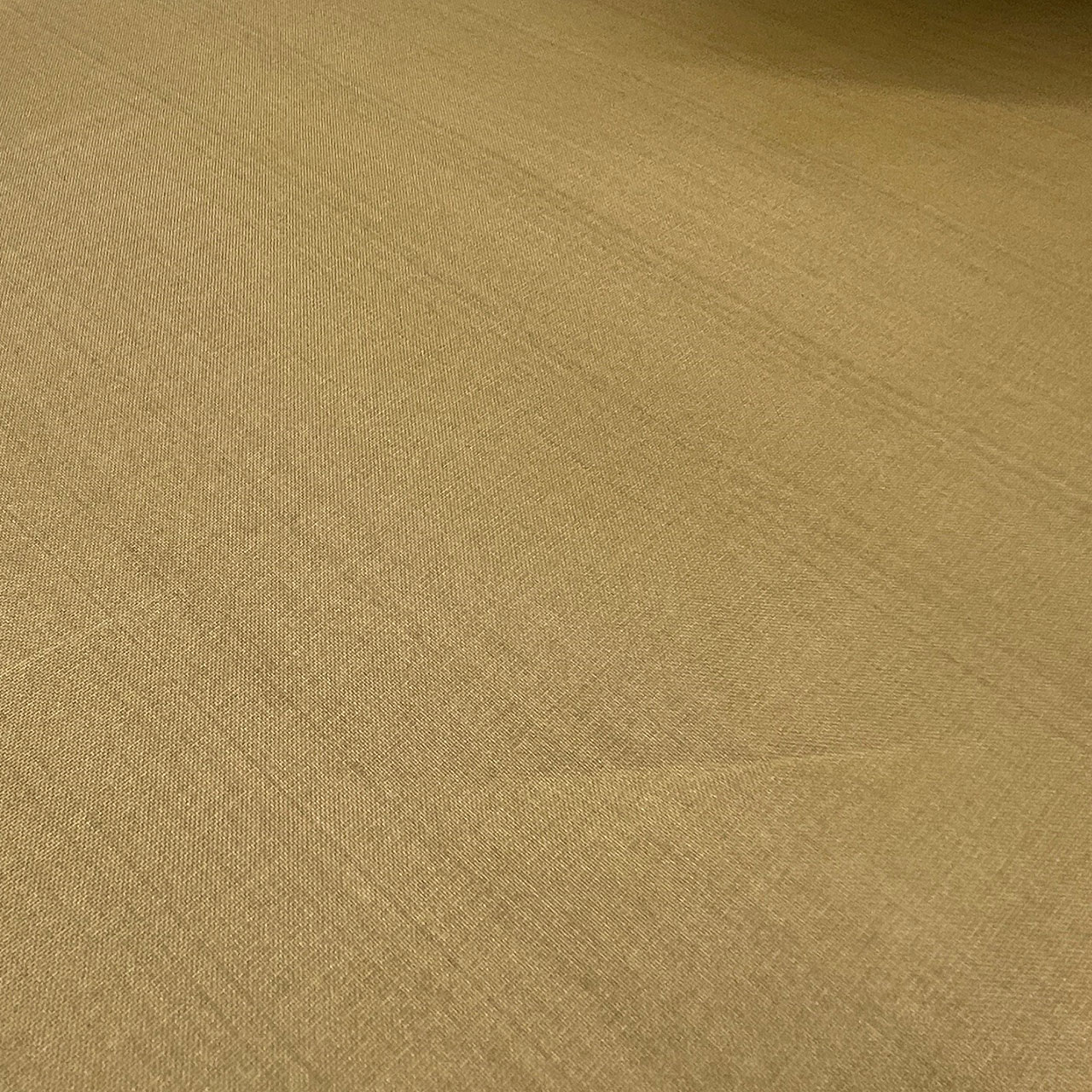

IZ100-BR
Coyote Brown

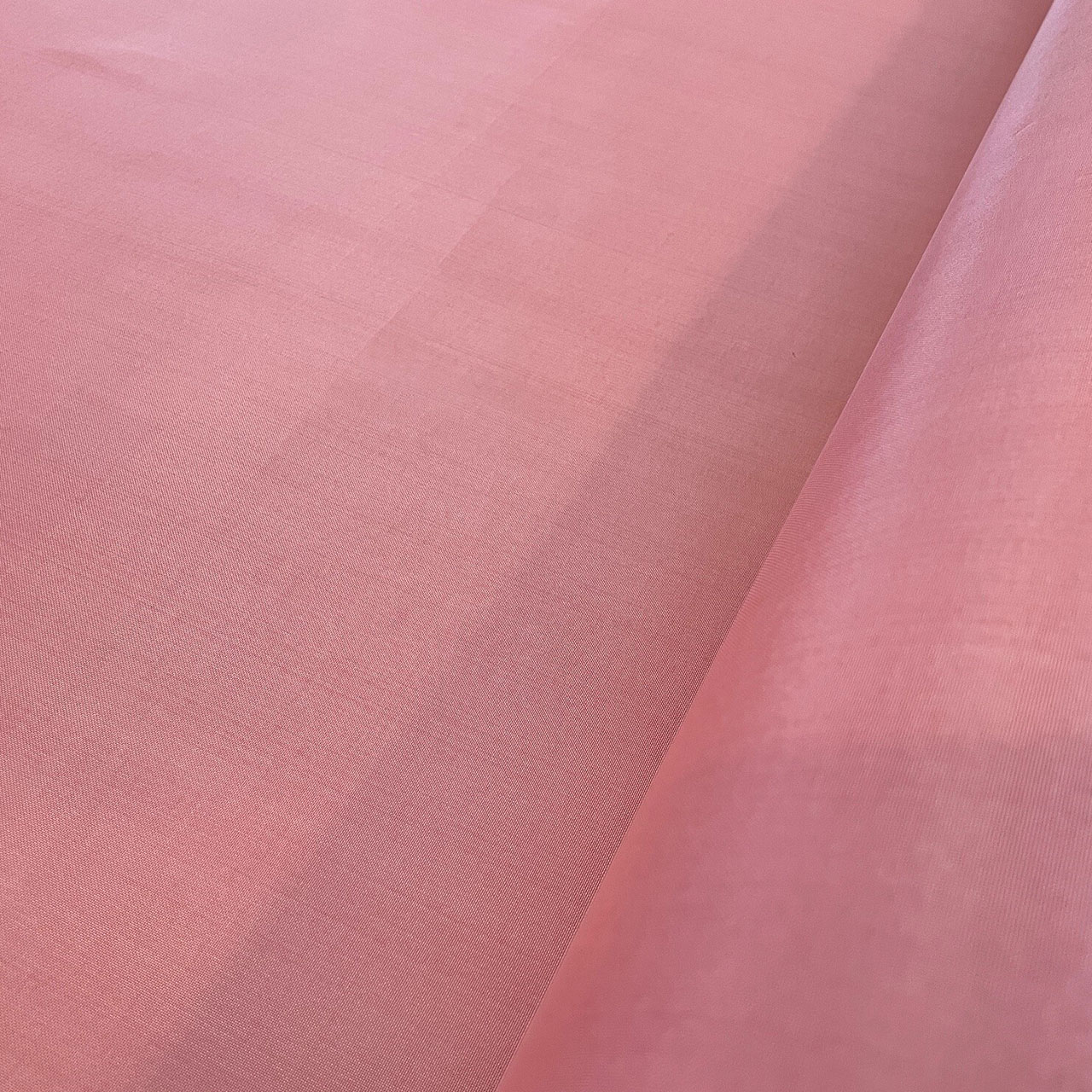

IZ100-RP
Rose Pink

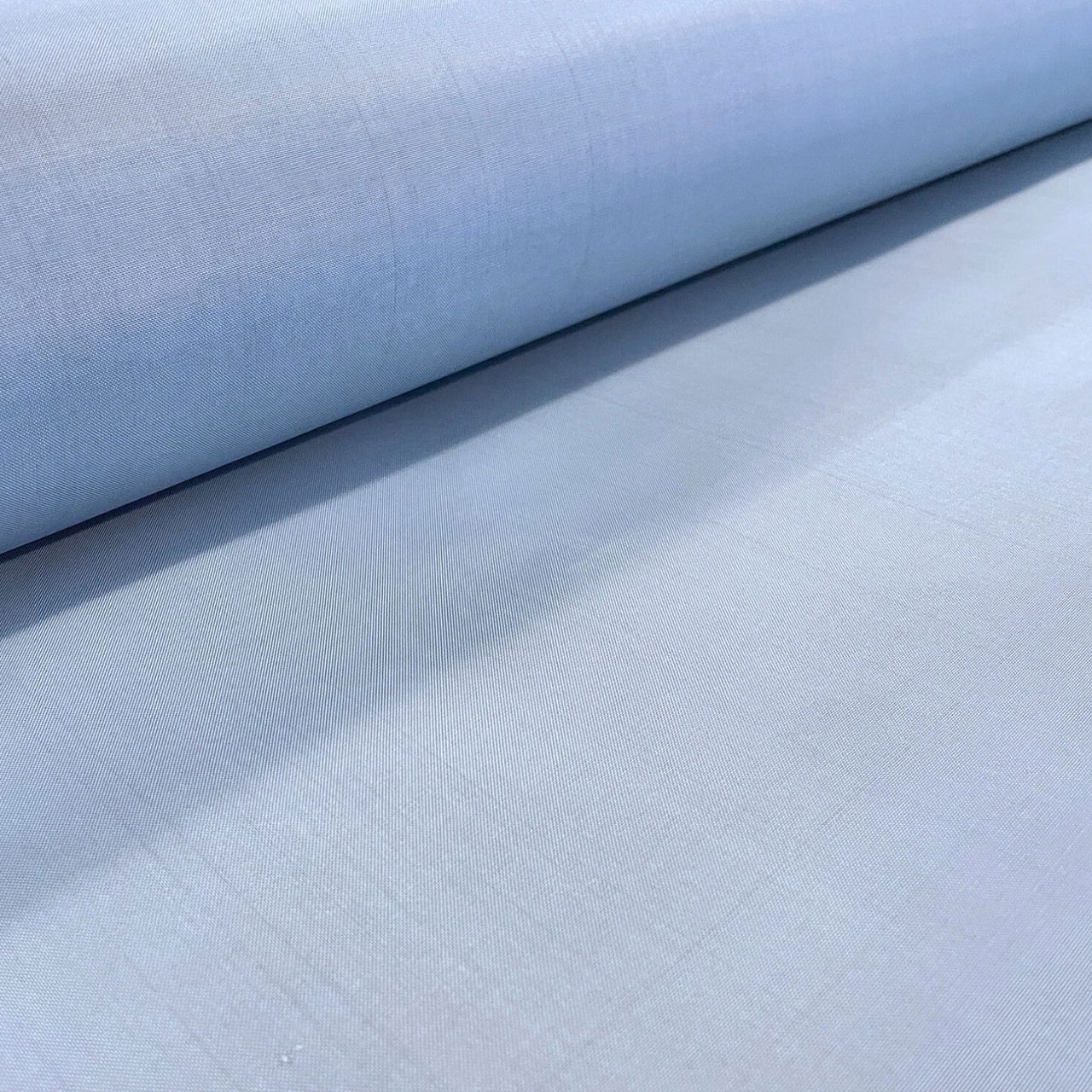

IZ100-SB
Sky Blue

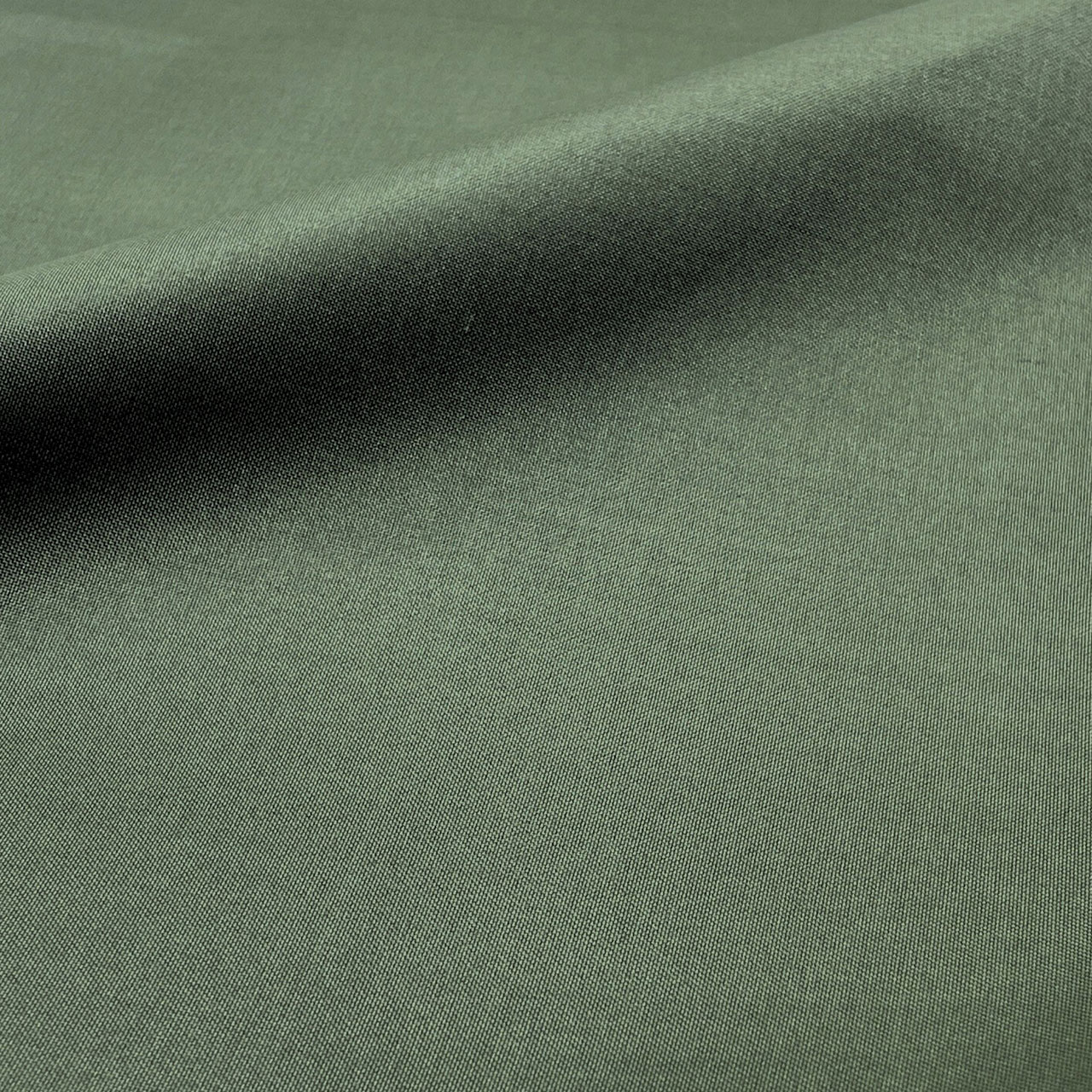

IZ100-OG
Olive Green
TECHNOFORCE™ STEEL
| Construction | ||
|---|---|---|
| UHMWPE 150Denir Filament Woven Fabric (TOYOBO IZANAS™ 100%) |
||
| Coating | ||
| DWR Coating | ||
| Weight | Width | Length |
| 100g/m2 (2.95oz/yd2) |
135cm (53”) |
50m (54.7y) |
| Tear Strength | ||
| Warp over 28.2lbf Weft over 28.2lbf (ASTM D1424) | ||
Performance

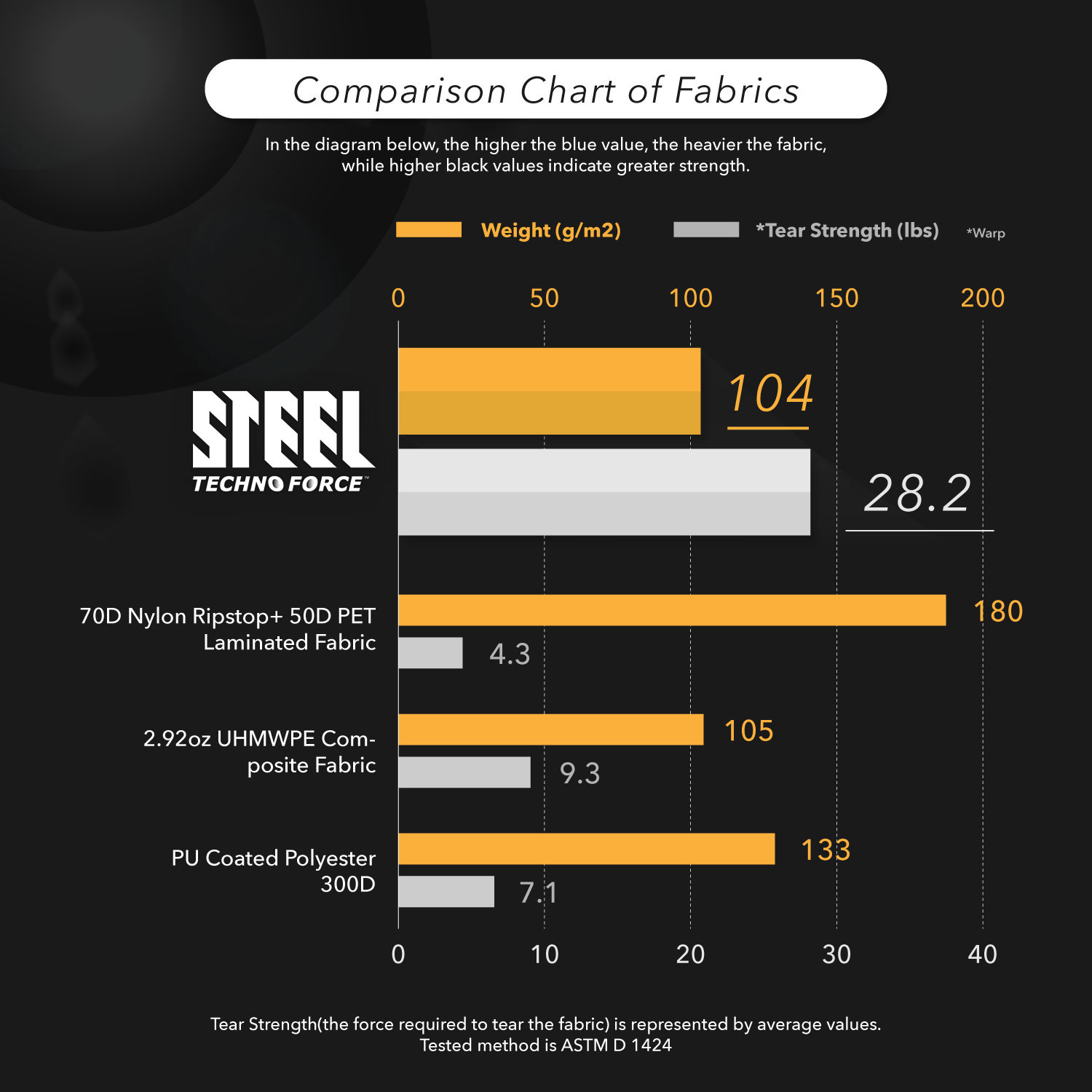

Compared to other outdoor fabrics, it is the LIGHTEST and STRONGEST. Its tear strength, in particular, is 5 to 8 times greater.
The fabric exhibits high ABRASION and CUTTING RESISTANCE, making it durable in harsh environments.
